The ROM Knee Brace is a professional-grade rehabilitation brace designed to provide controlled knee stabilization throughout post-operative recovery and injury rehabilitation. Featuring bilateral range of motion hinges with adjustable flexion and extension settings, the brace allows healthcare providers and users to follow progressive rehabilitation protocols after ACL, PCL, MCL, LCL, and other knee-related injuries or procedures.
Constructed with a lightweight aluminum frame, removable non-slip padding, and a universal left- or right-leg design, the brace offers customizable support while promoting comfort during extended wear. Tool-free length adjustment, numbered straps with quick-release buckles, and trimmable straps simplify fitting, making the brace suitable for clinical, rehabilitation, and home recovery environments.
Features

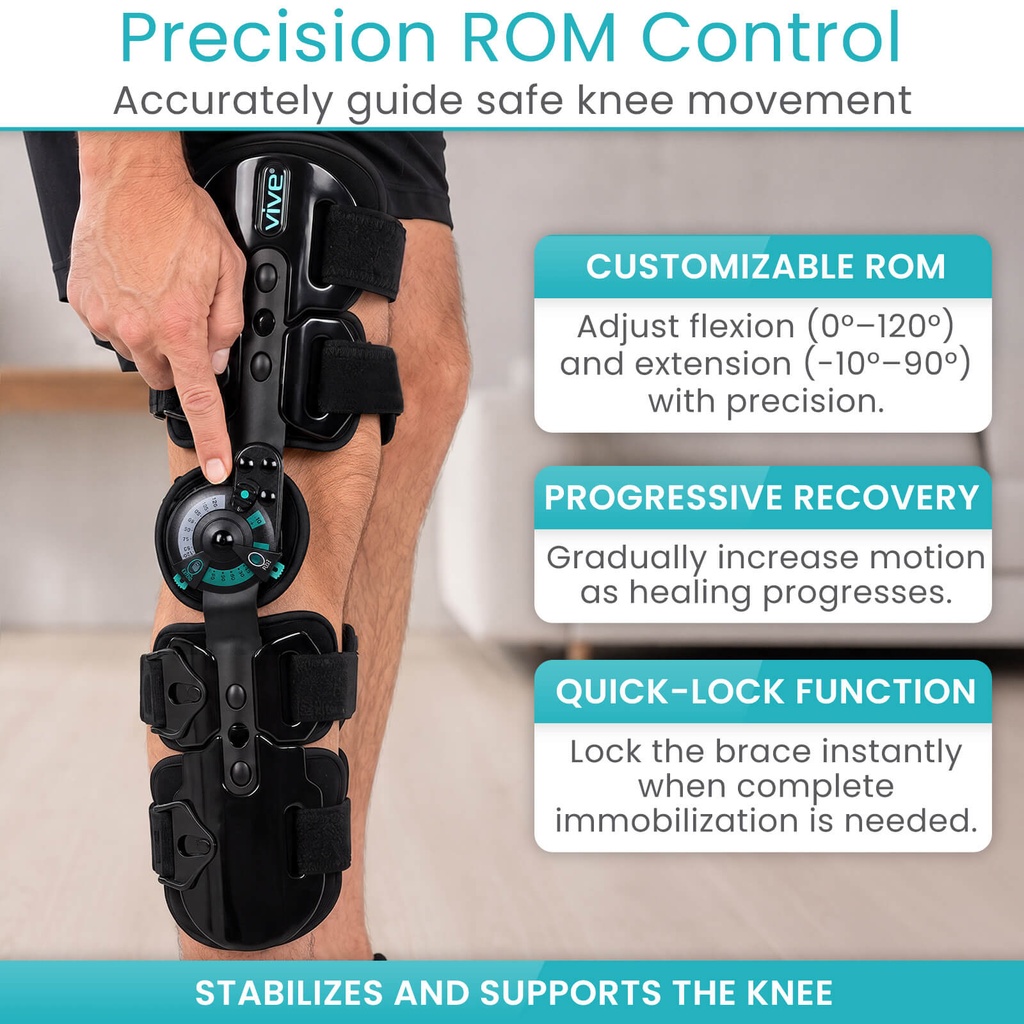

- Precision Range of Motion Control
Dual bilateral hinges provide independently adjustable flexion settings from 0° to 120° and extension settings from -10° to 90°, allowing controlled limitation of knee movement throughout each stage of rehabilitation. The quick-lock function enables rapid immobilization when prescribed during recovery. - Universal Adjustable Design

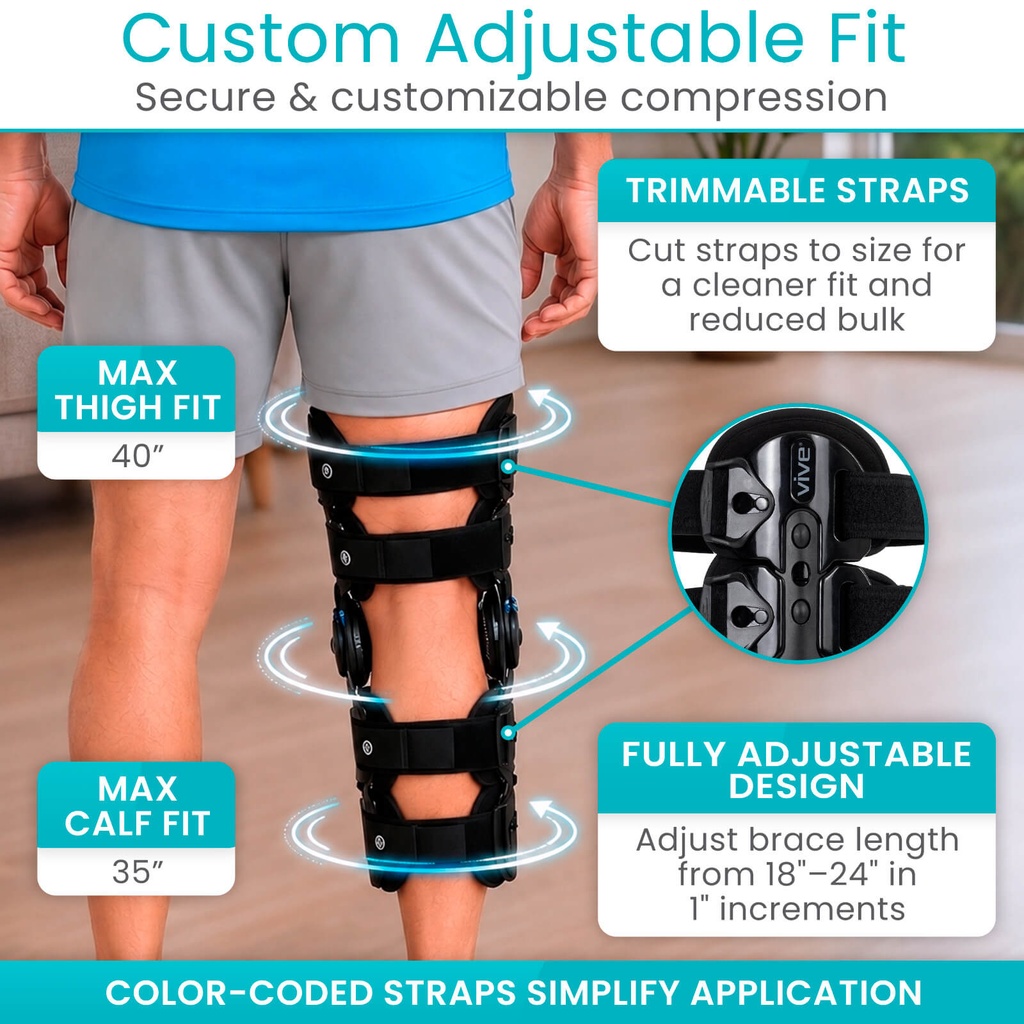

Designed for either the left or right leg, the brace features a tool-free telescoping frame that adjusts from 18" to 24" in one-inch increments. Four numbered, color-coded straps with quick-release buckles and trimmable lengths provide a customized fit while helping maintain proper brace positioning. - Professional-Grade Construction
The lightweight aluminum frame provides durable structural support without excessive bulk. Removable non-slip padding improves comfort during extended wear while helping reduce brace migration, and the washable padding supports long-term hygiene and repeated use. - Designed for Post-Operative Rehabilitation

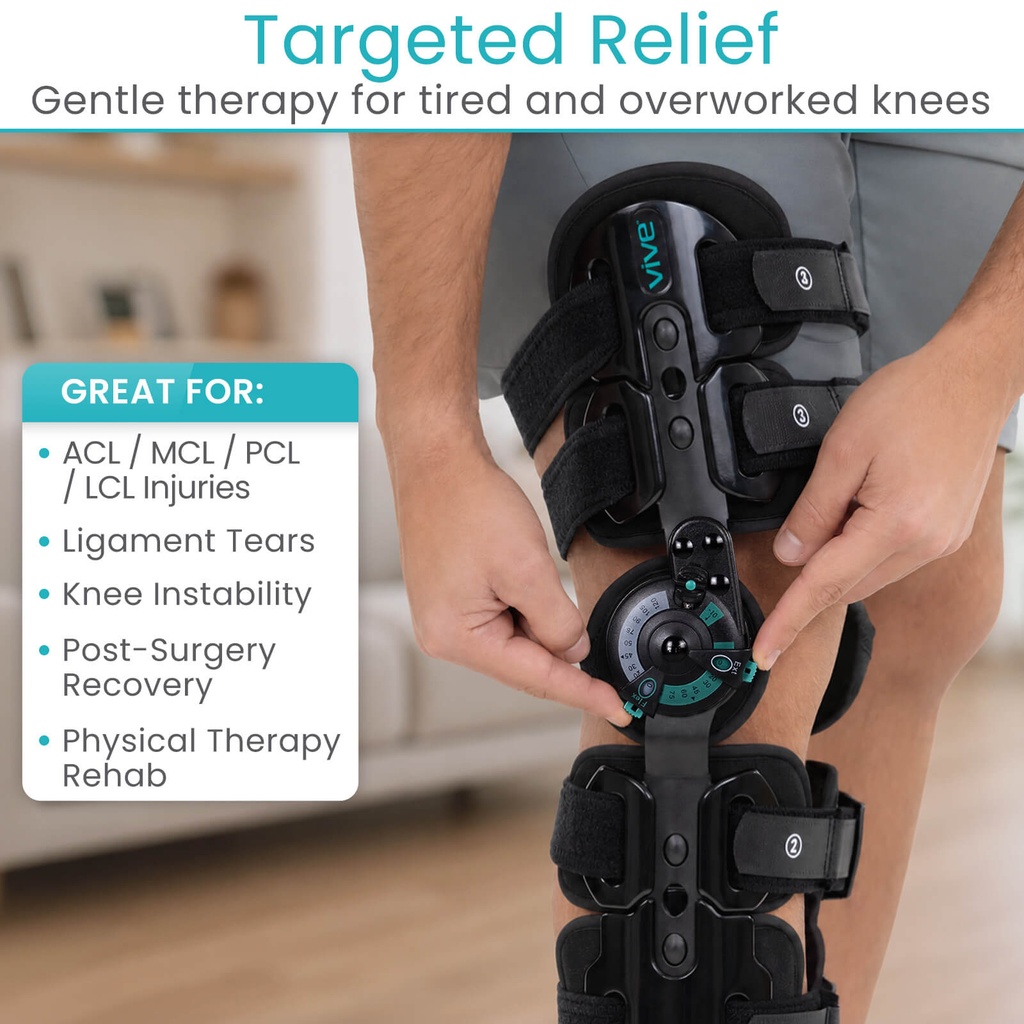

The ROM Knee Brace is intended to support rehabilitation following ACL, PCL, MCL, and LCL reconstruction, patella realignment, ligament strains, and other knee injuries requiring controlled range of motion. Its adjustable design accommodates progressive recovery protocols as prescribed by healthcare professionals.
General Specifications
What’s Included:
- 1x ROM Knee Brace.
- 1x Instruction Manual.
Uses:
- Adjustable rehabilitation knee brace for controlled range of motion following ACL, PCL, MCL, LCL surgery, patella realignment, ligament injuries, and post-operative recovery
Color:
Size(s):
- Adjustable size. Universal fit, for Left or Right Leg.
- Ensure the brace covers at least 6” above and 6” below the knee.
- Upper Thigh Circumference Up to 40".
- Lower Thigh Circumference Up to 40".
- Upper Calf Circumference Up to 35".
- Lower Calf Circumference Up to 35".
Dimensions:
Range:
- Length Adjustment 18"–24" (1" increments).
- Flexion Adjustment 0°, 10°, 20°, 30°, 45°, 60°, 75°, 90°, 105°, 120°.
- Extension Adjustment -10°, 0°, 10°, 20°, 30°, 45°, 60°, 75°, 90°.
- Lock positions: 45° Flexion, 15° Flexion, 90° Extension, 50° Extension, -10° Extension.
Weight:
Material(s):
- 20% Polyester, 35% Aluminum, 20% ABS, 18% Nylon, 5% PA66, 2% PC.
Care Instructions:
- Remove the padding before cleaning.
- Pads and Straps
- Remove from the brace before cleaning.
- Hand wash with cold water and mild detergent.
- Lay flat and air dry completely.
- Do not machine wash.
- Hinges and Plastic Panels
- Wipe clean using a disinfectant wipe.
- Allow to air dry completely before reassembly.
- Store the brace in a cool, dry place when not in use.
Warranty Policy
- Hinge mechanism: 1 year.
- Straps, padding and plastic components: 6 months.
