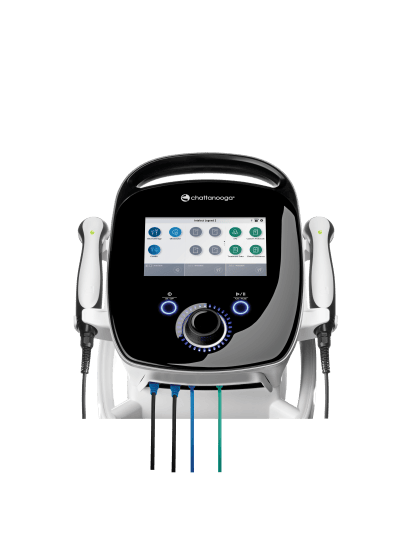

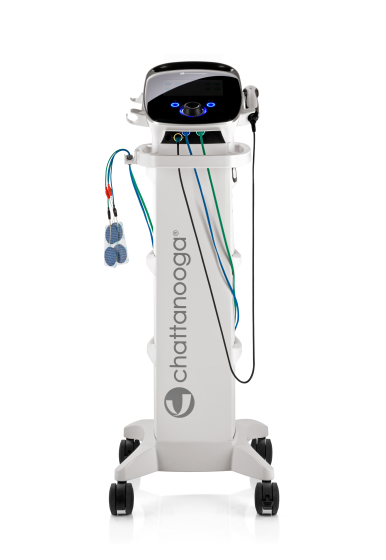

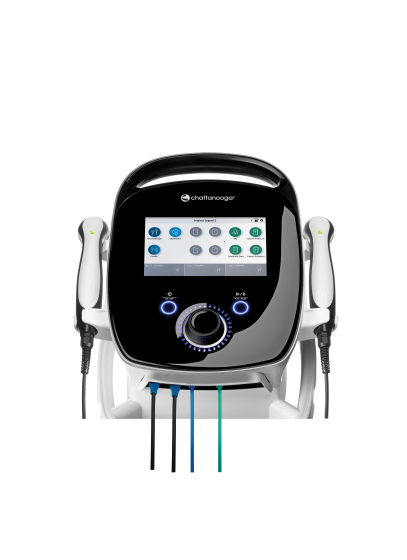

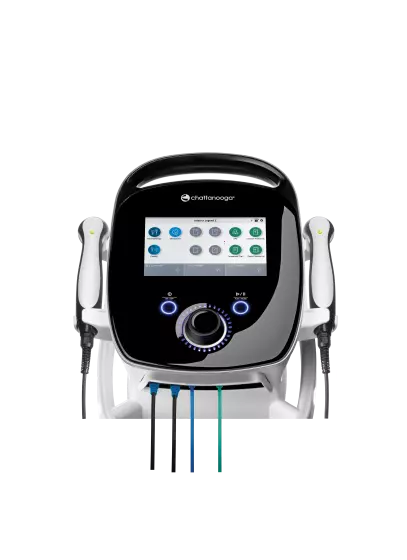

The Intelect® Legend 2 is a two-channel or four-channel combo electrotherapy system used with or without an optional integrated cart. For electrotherapy, 12 waveforms are included for use: VMS, Interferential, Premodulated, Symmetrical Biphasic, Asymmetrical Biphasic, HAN, Microcurrent, VMS Burst, Russian, Direct Current, High Volt and VMS FR. 1MHz and 3MHz ultrasound frequencies are also available for use independently or in combination with electrical stimulation. This equipment is to be used only under the prescription and supervision of a licensed medical practitioner.
KEY FEATURES
Hi resolution 7" touch screen
On board memory and software upgrade feature
Informative lights around the connection points
Suggested protocol settings (SPS)
12 waveforms for electrical stimulation: VMS, Interferential, Premodulated, Asymmetic Biphasic, Symmetric Biphasic, High Volt, Microcurrent, Russian, VMS Burst, HAN, Direct Current, VMS FR
1 MHz and 3 MHz ultrasound
INDICATIONS TENS/NMES
Relaxation of muscle spasms
Prevention of retardation of disuse atrophy
Increasing local blood circulation
Muscle re-education
Maintaining or increasing range of motion
Immediate postsurgical stimulation of calf muscles to prevent venous thrombosis
Symptomatic relief or management of chronic, intractable pain
Post-traumatic acute pain
Post-surgical acute pain
INDICATIONS ULTRASOUND: Relief of pain, muscle spasms and joint contractures that may be associated with conditions such as:
TECHNICAL
Input: 100-240V AC, 1.0 to 0.42A, 50/60Hz
Electrical Class: Class II
Mode of Operation: Continuous
Weight (no battery): 6.8 lbs. (8.2 lbs.)
Cart Weight: 22.3 lbs.
Cart Safe Working Load: 14.3 lbs.
Legal Manufacturer: DJO LLC
INCLUDED STANDARD ACCESSORIES:
81-5010 Intelect Legend 2 Two Channel Combo Set (or)
81-5011 Intelect Legend 2 Four Channel Combo Set
79967 Carbon Electrodes
42198 Dura-Stick+ 5cm Square Electrodes 4PK
70010 Stim Lead Wires CH 1&2
70011 Stim Lead Wires CH 3&4 (4CH Only)
12-10648 Nylatex Strap
15-1062 5cm2 Ultrasound Applicator
14679 Power Cord
OPTIONAL ACCESSORIES:
15-1136 Intelect Legend 2 Cart
14-1086 Intelect Legend 2 Battery
15-0160 1cm Applicator
15-0161 2cm Applicator
15-0163 10cm Applicator
4248-12 Ultrasound Gel (12 Bottles)
79967 6x8cm Carbon Electrodes (QTY 4)
15-1140 USB drive
